Collaboration that powers BOTPLANNERL5.

Rather than reinventing every subsystem, BOTPLANNERL5 integrates batteries, inverters, pumps and finishing tools from established manufacturers. This approach shortens development time and gives contractors access to familiar service networks and spare parts.

Energy Platform

Energy platform

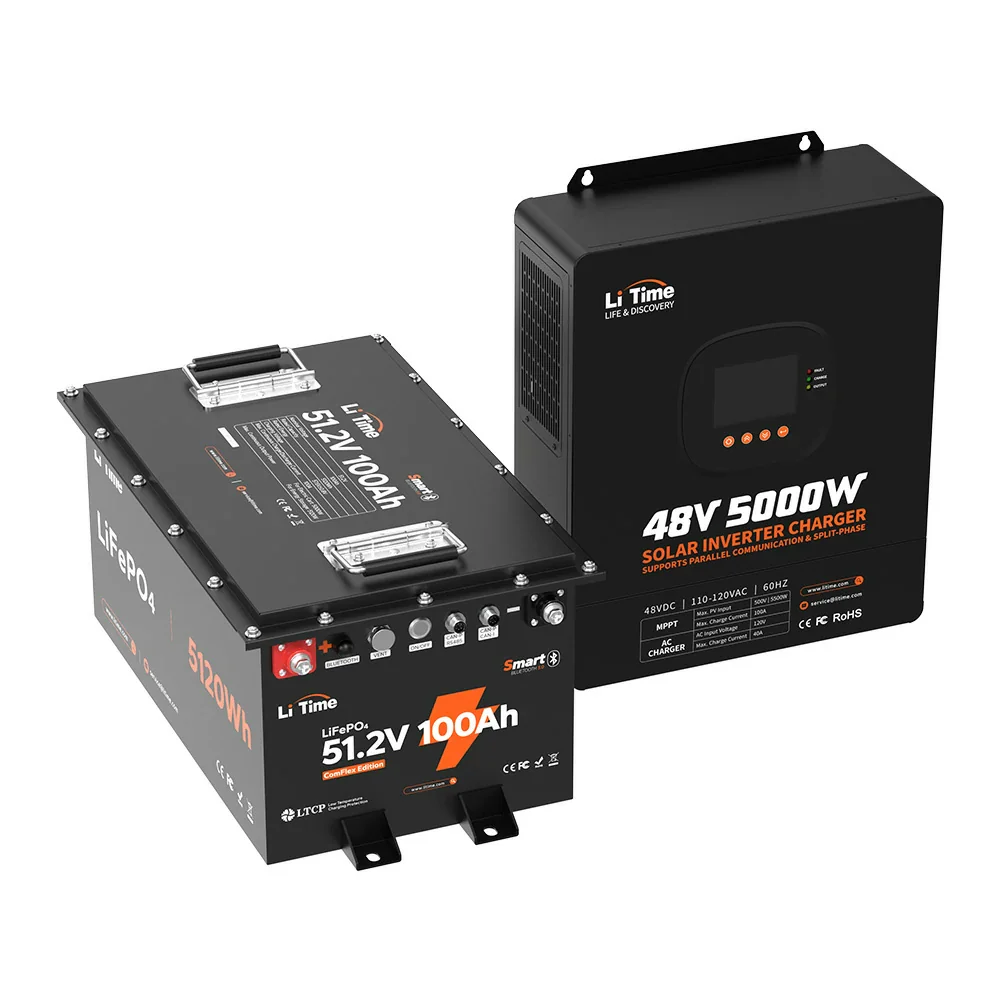

LiTime 48 V LiFePO₄ & 5000 W Inverter

High-cycle battery pack and hybrid inverter/charger

BOTPLANNERL5 is designed around a 48 V LiFePO₄ architecture. LiTime’s rack-style 51.2 V 100 Ah ComFlex battery and 48 V 5000 W inverter/charger provide the backbone for all-day runtime and flexible charging.

• High usable energy – more than 5 kWh per battery, expandable for larger sites.
• Integrated Bluetooth / CAN communication for monitoring SOC, cycles and alarms.
• Hybrid inverter capable of feeding pumps and auxiliary tools directly from the 48 V bus.
• Scalable to multi-pack configurations when robots are deployed in fleets.

Energy platform

Value 48 V 100 Ah LiFePO₄ Battery (Marketplace Candidate)

Low-cost option under evaluation (TEMU-class pricing)

As part of ongoing cost-optimization efforts, BOTPLANNERL5 is evaluating alternative 48 V LiFePO₄ battery suppliers available through global marketplaces. MFUZOP represents a potential future option for entry-level or high-volume deployments.

• Nominal 48 V architecture compatible with L5 power system
• 100 Ah capacity targeting budget-sensitive configurations
• Suitable for non-critical or supervised deployment scenarios
• Currently under technical validation and lifecycle testing

Energy platform

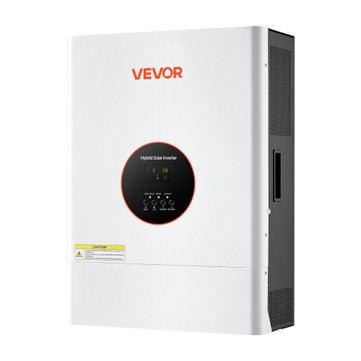

VEVOR Inverter (48 V ecosystem – under evaluation)

Alternate inverter option for prototyping and cost benchmarking

VEVOR inverter options are being evaluated as an alternate path for prototyping and cost benchmarking. The goal is to compare performance, protection features and reliability versus higher-end inverter platforms.

• Benchmarking for startup surge loads and continuous output.
• Protection behavior: overload, thermal, and low-voltage shutdown.
• Fit with the 48 V bus and wiring/charging workflow.
• Used as a reference for selecting the final production inverter.

Airless Systems

Airless systems

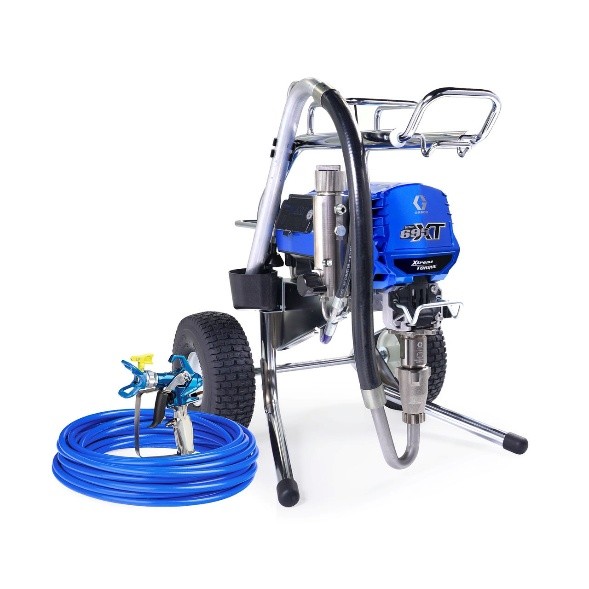

Graco Professional Airless Sprayers

Integration with contractor-grade pumps & accessories

For coating, skim-spray and painting, BOTPLANNERL5 is intended to work with Graco airless pumps and extension wands. Using standard tips and hoses gives contractors freedom to choose materials and maintenance routines they already know.

• Compatibility with common airless rigs used in drywall and commercial painting.
• Option to trigger via low-voltage control or solenoid valves for precise start/stop.
• Large global network for service, parts and tips.
• Same gear can be used off-robot for touch-up or manual work.

Airless systems

Titan Airless Platforms (under evaluation)

Alternative contractor-grade pumps for coating and painting

Titan systems are being evaluated as additional airless options for contractors who standardize on Titan hardware, hoses and service networks.

• Compatibility with common tips, hoses and extension wands.
• Evaluation of pressure stability and jobsite reliability.
• Potential for fleet standardization depending on contractor preference.
• Integration strategy aligns with BOTPLANNERL5 trigger/valve control.

Airless systems

VEVOR 1500 W Airless Sprayer (benchmark candidate)

Low-cost sprayer option for prototyping and comparison

VEVOR 1500 W airless units are included as a benchmark candidate to understand cost/performance tradeoffs. This does not replace contractor-grade systems, but helps validate control concepts and early prototypes.

• Useful for concept validation and early integration tests.
• Comparison point for finish quality and flow stability.
• Helps de-risk nozzle/trigger control and hose management.
• Final production path remains aligned with professional serviceable platforms.

Sanding Systems

Sanding systems

Mirka LEROS + Dust Extraction (reference platform)

Professional sanding ecosystem for reduced dust and consistent finish

The BOTPLANNERL5 sanding concept is designed to integrate with professional sanding heads and HEPA dust extraction workflows to reduce airborne particles and improve site cleanliness.

• Industrial-grade approach to dust control and ergonomics.
• Reference for vacuum hose routing and jobsite workflow.
• Benchmark for finish quality and surface consistency.
• Supports the robotics goal: repeatable overlap and controlled pressure.

Also under evaluation

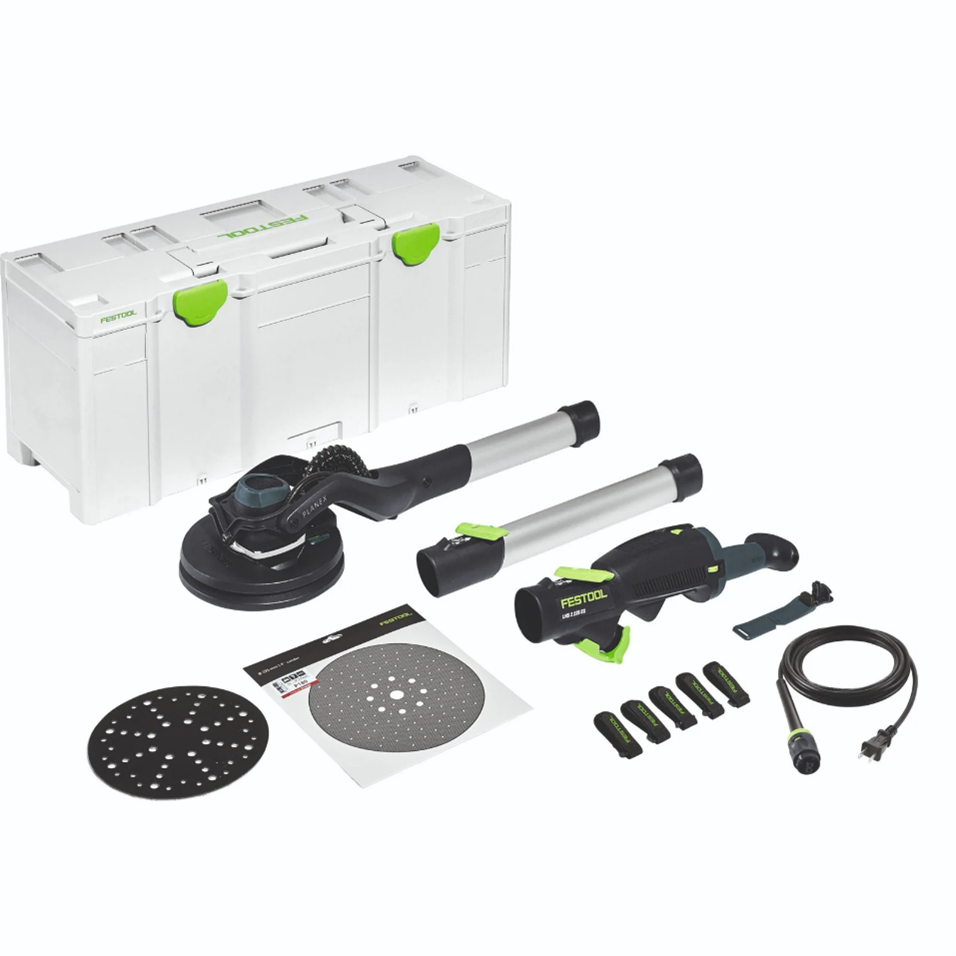

Festool Drywall Sanding Platform

Professional sanding ecosystem and accessories

Festool is a premium candidate known for dust control, durability, and a strong ecosystem of abrasives, accessories, and extractors. If selected, BOTPLANNERL5 can integrate the sanding head and coordinate motion parameters for repeatable finish quality.

• Strong dust extraction ecosystem.
• Premium build quality and accessories.
• Candidate for PRO / XL PRO configurations.

Sanding systems

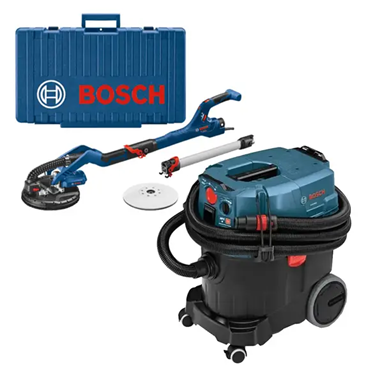

Bosch Drywall Sanding Tools (candidate)

Option under evaluation for sanding head integration and accessories

Bosch sanding platforms are included as potential candidates depending on availability, accessory ecosystem, and contractor preference.

• Evaluation of head geometry for robotic mounting.
• Accessory and dust extraction compatibility checks.
• Serviceability and parts availability for job sites.

Sanding systems

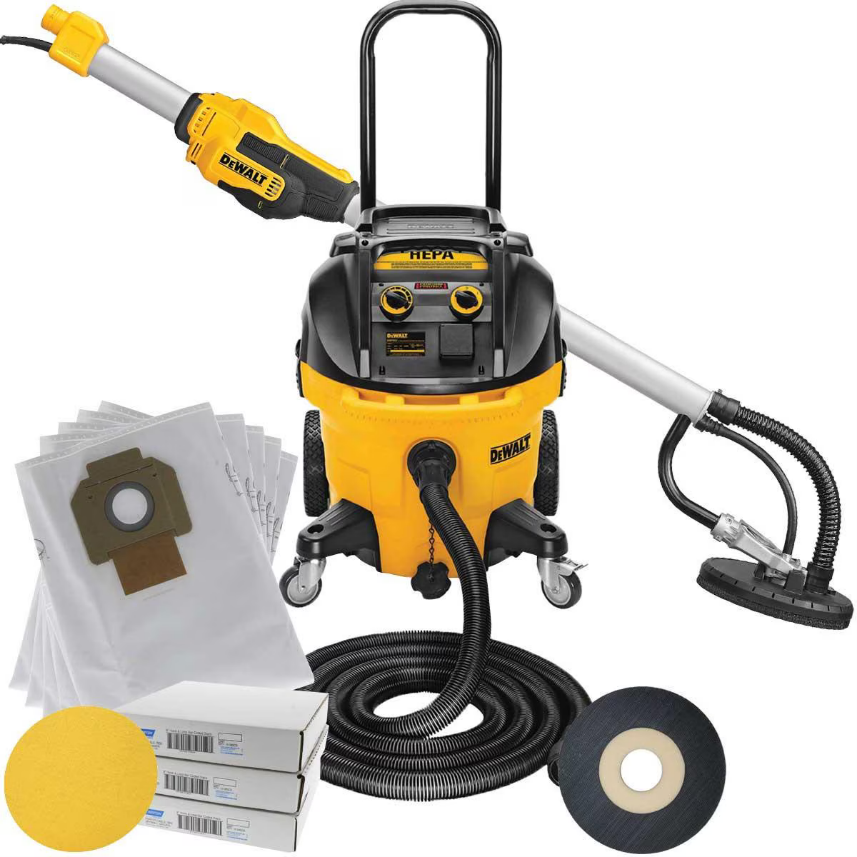

DeWalt Drywall Sanding Tools (candidate)

Alternate candidate for sanding head + extractor combinations

DeWalt sanding systems are also considered as candidate platforms for integration, especially in fleets where contractors standardize on DeWalt tools.

• Benchmarking for duty cycle and consistent performance.
• Integration feasibility with robotic bracketry and hose management.
• Jobsite familiarity can speed adoption.
